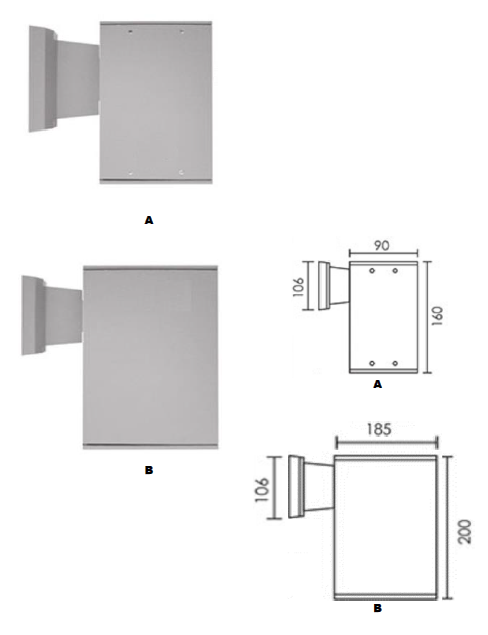

UD 6304
Loading...
Extruded aluminium body and ring
Clear tempered glass
Beam angle : 24° & 36° (PAR16)
: 30° (PAR30)
: 30° (PAR38 2700k) & 120° (PAR38 3000k)
High purity aluminium anodized reflector
Colour temperature : 2700k, 3000k, 4000k & 6500k
Input voltage : 240v
Protection class : IP65
Product Specifications
| Code | Lamp | Wattage | Lumens | Colour Temp. |
| UD 6304.4.5.2.7k/4k/6.5k(A) | PAR16 LED | 4.5w | 380 ~ 420lm | 2700 ~ 6500k |
| UD 6304.5.3k(A) | PAR16 LED | 5w | 500lm | 3000k |
| UD 6304.7.2.7k/4k/6.5k(A) | PAR16 LED | 7w | 625 ~ 650lm | 2700 ~ 6500k |
| UD 6304.20.3k/4k(B) | PAR30 LED | 20w | 2000lm | 3000 ~ 4000k |
| UD 6304.13.2.7k(B) | PAR38 LED | 13w | 1200lm | 2700k |
| UD 6304.16.3k(B) | PAR38 LED | 16w | 1100lm | 3000k |
