WL 9110
Loading...

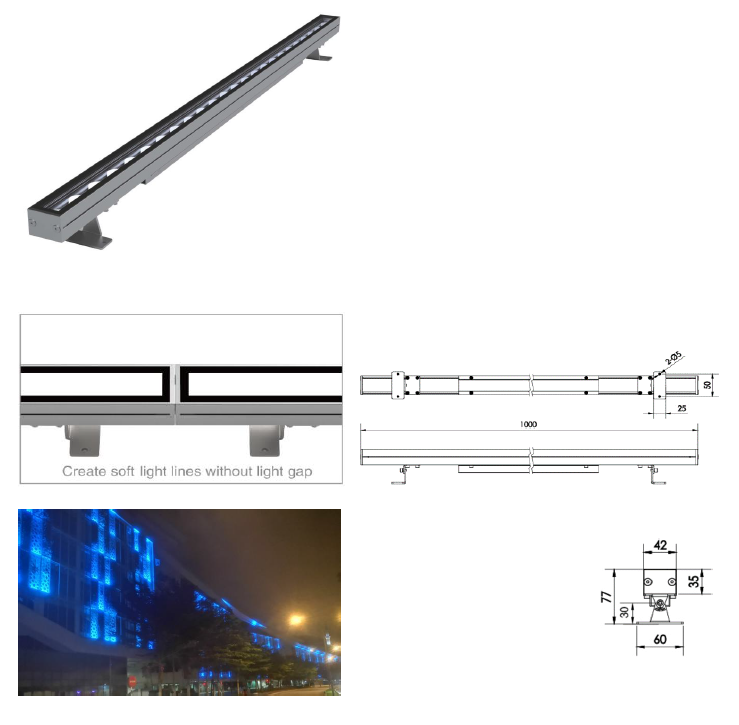

High power LED linear lighting excellent appearance, with design of increasing heat dissipation to fully ensure the
stability and long life-span of LED fixture. Extruded aluminium body with surface anodizing treatment and adopts
high strength toughened glass
Input Voltage : DC24V
Beam Angle : 8°, 12.5°, 20°, 30°, 60°, 15×30° & 10×60° (Mono colour)
: 20°, 40°, 60°,15×25° & 15×60° (4in1 RGBW)
Colour temperature : 3000k, 4000k, 5000k & 4in1 RGBW
Protection class : IP66
Product Specifications
| Code | Lamp | Wattage | Lumens | Colour Temp. |
| WL 9110.18.3k/4k/5k | LED | 18w | 1620 ~ 1750lm | 3000 ~ 5000k |
| WL 9110.24.3k/4k/5k | LED | 24w | 2160 ~ 2332lm | 3000 ~ 5000k |
| WL 9110.36.3k/4k/5k | LED | 36w | 3240 ~ 3450lm | 3000 ~ 5000k |
| WL 9110.36.RGBW | 4in1 LED | 36w | 1980lm | RGBW |
| WL 9110.48.RGBW | 4in1 LED | 48w | 2640lm | RGBW |
| WL 9110.9.3k/4k/5k(0.5m) | LED | 9w | 810 ~ 972lm | 3000 ~ 5000k |
| WL 9110.12.3k/4k/5k(0.5m) | LED | 12w | 1080 ~ 1166lm | 3000 ~ 5000k |
| WL 9110.18.3k/4k/5k(0.5m) | LED | 18w | 1620 ~ 1750lm | 3000 ~ 5000k |
| WL 9110.12.RGBW(0.5m) | 4in1 LED | 12w | 660lm | RGBW |
| WL 9110.18.RGBW(0.5m) | 4in1 LED | 18w | 990lm | RGBW |
| WL 9110.8.3k/4k/5k(0.3m) | LED | 8w | 720lm | 3000 ~ 5000k |
